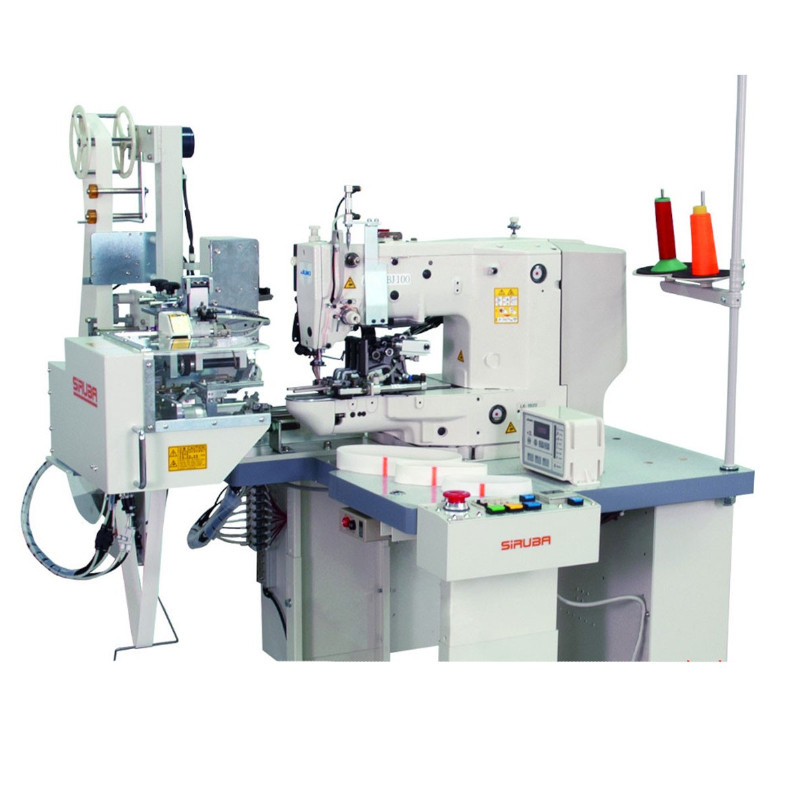

SIRUBA ASP-EBJ100 Automatic Sewing Machine
SIRUBA ASP-EBJ100 Automatic Sewing Machine
SIRUBA ASP-EBJ100 is a high-performance automatic machine for measuring and joining flat rubber into closed circuits. The machine will be ideal for sewing briefs, panties, boxer shorts, tops, etc. The machine automatically measures and cuts the rubber to the specified length, then folds the two edges together and sews according to the programmed sewing pattern. The machine cooperates with the sewing head of the Juki LK-1920 machine, and the whole process is controlled by a panel located on the tabletop. The automatic machine has an integrated energy-saving SERVO drive, which is mounted in the head of the machine, directly on the main shaft working in the so-called Direct Drive system. A source of compressed air, e.g. (compressor), is required for proper operation of the machine.
Machine assembled, complete with warranty from the manufacturer.
Tops and base of the highest quality brand SIRUBA !!!
If you need parts for your machine, please visit CZESCIZIELINSKI.PL
Secure transaction is guaranteed by SSL certificate
Delivery of goods is provided by the courier company DPD
Electronic payments Przelewy24.pl
Technical specifications:
- Sewing speed up to 2500 stitches/minute
- Length of measured elastic 300 - 1980 mm
- Overlap size of stitched edges 0 - 13 mm
- Width of elastic 20 - 50 mm
- Productivity 3600 pcs/8 hours (assuming 190 stitches on joining rubber).
- DPx5 needle system
- Power supply 230V
- Required connection to compressed air (average consumption 30 liters/min). Pressure 0.5MPa
ASP-EBJ100
