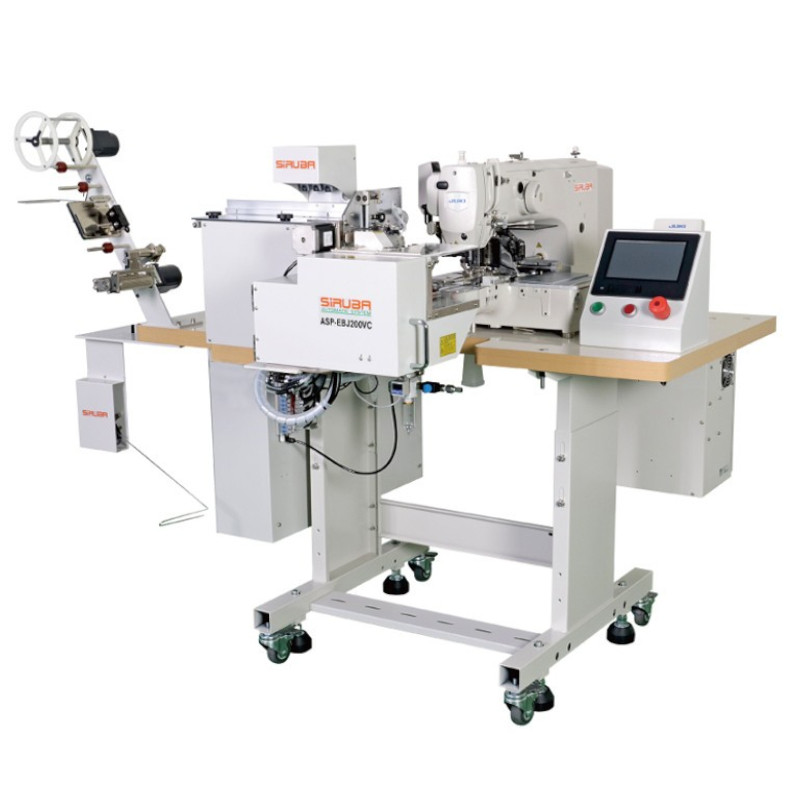

SIRUBA ASP-EBJ200 Automatic Sewing Machine
SIRUBA ASP-EBJ200 Automatic Sewing Machine
SIRUBA ASP-EBJ200 is a high-performance automatic machine with logo detection for measuring and joining flat elastic into closed circuits. The machine will be ideal for sewing briefs, panties, boxer shorts, tops, etc. The machine automatically measures and cuts the elastic to the specified length, successively folds the two edges together and stitches according to the programmed stitching pattern. The machine cooperates with the sewing head of the Juki AMS-210EN machine. A system of three optical sensors positions the logo (on the rubber) in the center of the measured section. The entire process is controlled by a panel located on the tabletop. The machine has an integrated energy-saving SERVO drive, which has been mounted in the head of the machine, directly on the main shaft working in the so-called Direct Drive system. A source of compressed air, e.g. (compressor), is required for proper operation of the machine.
Machine assembled, complete with warranty from the manufacturer.
Tops and base of the highest quality brand SIRUBA !!!
If you need parts for your machine, please visit CZESCIZIELINSKI.PL
Secure transaction is guaranteed by SSL certificate
Delivery of goods is provided by the courier company DPD
Electronic payments Przelewy24.pl
Technical specifications:
- Sewing speed up to 2800 stitches/minute
- Length of measured elastic 300 - 1980 mm
- Overlap size of stitched edges 0 - 13 mm
- Width of elastic 20 - 90 mm
- Productivity 4000 pcs/8 hours (assuming 190 stitches on joining rubber).
- DPx5 needle system
- Power supply 230V
- Required connection to compressed air (average consumption 33 liters/min). Pressure 0.5MPa
ASP-EBJ200
