SIRUBA BH-9820-01 Buttonhole Machines

SIRUBA BH-9820-01 Buttonhole Machines

SIRUBA DL7200D-NM1-16 Buttonhole Machines

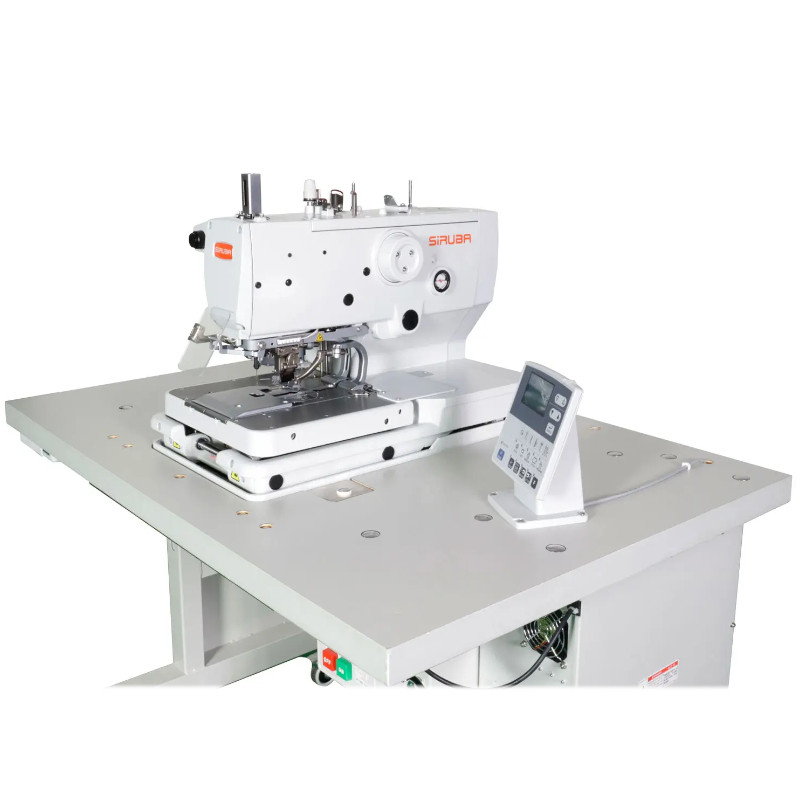

SIRUBA BH-9820-01 is an automatic 2-thread clothing buttonhole machines. The machine is equipped with an energy-saving SERVO motor built into the machine head working in the so-called Direct Drive system. As well as stepper motors controlling individual functions. The machine sews hole stitches with or without a circle, with a cut before or after hemming, with or without a converging bar, as well as holes with a cross bar. The function of programming the cyclic sewing of several different types of holes, thanks to which we sew the holes occurring in the product without having to stop the machine. Quickly changing the type of hole, without difficult mechanical adjustments, gives the machine the character ideal for short-run production with high variability of patterns. The main parameters of the hole punch machine, including the type and size of the sewn hole, the method of cutting, and the sewing speed, are programmed using a modern, easy-to-read control panel. For each type of hole, it is possible to individually program the shape, width, type of cutting, etc.

Subclass BH-9820-01 is characterized by the possibility of sewing round holes.

Machine assembled, complete with warranty from the manufacturer.

Tops and base of the highest quality brand Kessler !!!

If you need parts for your machine, please visit CZESCIZIELINSKI.PL

BH-9820-01
zł31,000.00
Tax included
Available



Secure transaction is guaranteed by SSL certificate



Delivery of goods is provided by the courier company DPD



Electronic payments Przelewy24.pl

Technical specifications:

  • Sewing speed: up to 2,500 stitches/minute
  • Stitch length: 0.5-2.0 mm
  • Edging width: 1.5-4.0 mm
  • Sewn hole length: 8-42 mm (eyelet hole), 5-42 mm (straight hole)
  • Diameter of round hole (OPTION) - 3mm, 4mm or 5mm
  • Foot lift height: 12mm standard (up to 16mm optional)
  • Possibility to sew gimpy: yes
  • Thread cutting: yes
  • Needle system: DOx558
  • Air consumption: 43.2 l/min (8 cycles/min)
  • Power supply 230V
  • Required connection to a source of compressed air e.g. (compressor)
BH-9820-01
