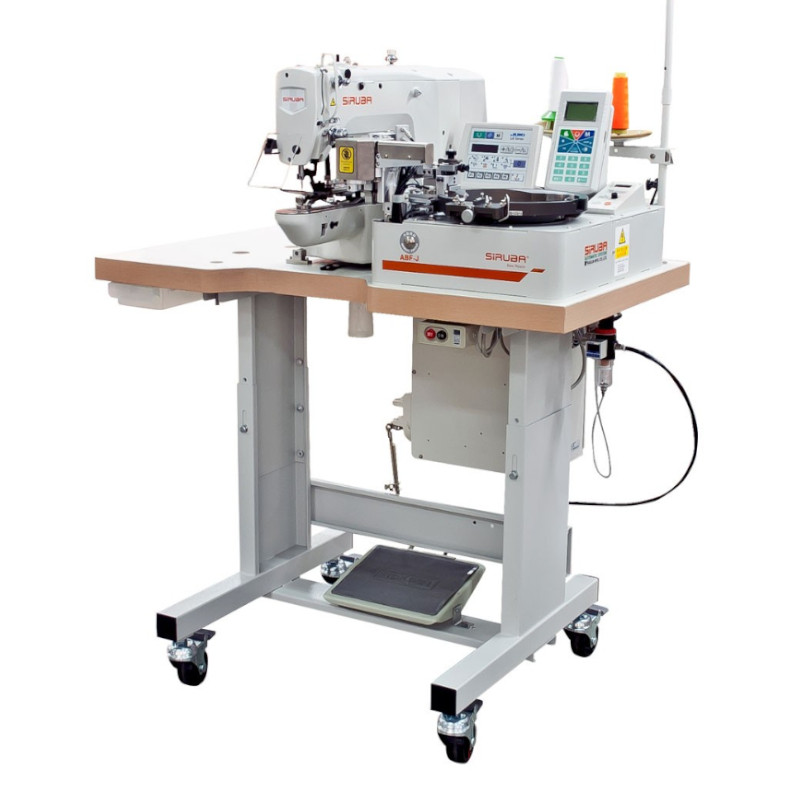

SIRUBA ASP-ABF100J Button Sewing Machine
SIRUBA ASP-ABF100J Automatic Sewing Machine
SIRUBA ASP-ABF100J is a 2-threads button sewing machine with automatic button feeder. The machine is adapted for sewing flat buttons. The use of lockstitch stitch guarantees permanent fixing of the button, without the risk of accidental unstitching. The button sewing machine is equipped with button sewing head LKS-1903AN (produced in cooperation with Juki company). Button feeding is carried out automatically, which significantly increases the efficiency of work. The maximum speed of button feeding is 120 pcs/min (one button every 0,5 sec). The whole work is controlled by stepper motors. The automatic feeder can be adapted for buttons with a diameter of 8-20m, and there is no need to replace it with additional components. The button maker is equipped with a set of holders in five sizes from 2.2 to 3.6 mm (with two or four pins in each size). To increase productivity, it is equipped with a system of automatic rejection of buttons, set with the top side down. The entire control process is carried out using a clear and easy-to-use graphic control panel. A source of compressed air, e.g. (compressor), is required for proper operation of the machine.
Machine assembled, complete with warranty from the manufacturer.
Tops and base of the highest quality brand SIRUBA !!!
If you need parts for your machine, please visit CZESCIZIELINSKI.PL
Secure transaction is guaranteed by SSL certificate
Delivery of goods is provided by the courier company DPD
Electronic payments Przelewy24.pl
Technical specifications:
- Sewing speed up to 2700 stitches/minute
- Available buttonhole spacing 2.2; 2.4; 2.8; 3.2; 3.6 mm (standard equipment)
- DPx17 #14 needle system
- Button diameter 10 - 22 mm
- Thickness of button 1,5 - 3,5 mm
- Number of sewing patterns: 33
- Power supply 230V / 50Hz
- Average consumption 20 liters/min
- Required connection to compressed air.
